Let's dive into the world of injection molding, where something called a weld line plays a big role. Knowing what a weld line is, how it impacts the quality and strength of parts made this way, and what steps we can take to avoid or lessen its effects is key for making better products and working more efficiently.
First off, let's get clear on what a weld line actually is. During injection molding, when two or more streams of plastic come together in the mold, they fuse and leave a visible line where they met – that's the weld line. This happens because as the plastic cools down, it shrinks unevenly, causing different areas to be tighter than others, which creates the line.
Weld lines can really mess with the quality and strength of the parts you make. For starters, the material at the weld line isn't as tight, making it more likely to have issues like cracks or bubbles. These problems weaken the part overall and make it less durable. Plus, weld lines can ruin the surface finish, leaving it bumpy and affecting how the product looks and feels. And lastly, they can mess with the exact size of the parts, making them unpredictable and hard to assemble or use properly.
In order to prevent or minimize the occurrence of weld lines, we can take the following measures:
- Optimize mold design: By improving the structure and layout of the mold, the flow of plastic materials in the mold is smoother and the occurrence of weld lines is reduced. على سبيل المثال, methods such as multi-gate design and runner balance design can be used.
- Adjust the injection molding process parameters: By adjusting the injection speed, ضغط, temperature and other process parameters, the cooling process of the plastic material in the mold is more uniform and the generation of weld lines is reduced. على سبيل المثال, the injection speed can be appropriately reduced, the holding pressure time can be increased, إلخ.
- Choose the appropriate plastic material: Different plastic materials have different shrinkage rates and fluidities. Choosing the appropriate plastic material can reduce the occurrence of weld lines. على سبيل المثال, you can choose a plastic material with a low shrinkage rate, or add an appropriate amount of filler to improve the fluidity of the plastic material.
- Use post-processing processes: Through post-processing processes such as heat treatment, spraying, and grinding, the surface quality of the weld line can be improved and the overall performance of the parts can be improved.
باختصار, understanding the concept of weld lines and their impact on injection molded parts and taking effective prevention and control measures are of great significance to improving product quality and production efficiency.
Weld lines are common defects in injection-molded plastic parts that occur when two flow fronts of molten plastic meet and fuse together during the molding process. These lines can be visually noticeable and may affect the mechanical properties of the part. Understanding the causes and implementing appropriate solutions is crucial to minimize or eliminate weld lines. Here are the primary causes and potential solutions for weld lines in injection molding:
Causes of Weld Lines:
- Part Geometry: Complex part geometries with multiple thick and thin sections can create flow imbalances, leading to the convergence of molten plastic at different locations, resulting in weld lines.
- Material Selection: Certain plastic materials, especially those with low melt flow rates or high melt viscosities, are more prone to weld lines due to their limited ability to flow and merge smoothly.
- Injection Molding Process Parameters: Improper processing parameters, such as low injection speed or temperature, inadequate holding pressure, or excessively high cooling rates, can cause incomplete fusion of molten plastic, leading to weld lines.
- Gate Location: Improper gate placement can result in converging melt streams that create visible weld lines on the part surface.
- تصميم قوالب: Poor mold design, including improper gate placement, inadequate venting, or insufficient cooling channels, can contribute to weld line formation.
Solutions for Weld Lines:
- Adjust Injection Molding Parameters: Optimizing injection speed, ضغط, and temperature can help ensure better melt flow and reduce the likelihood of weld line formation.
- Gate Placement: Properly positioning the gate can direct the melt flow to minimize weld lines or relocate the weld line to non-visible areas of the part.
- Mold Design Optimization: Improving mold design, such as adding venting to release trapped air or adjusting cooling channels for uniform cooling, can enhance plastic flow and minimize weld lines.
- Material Selection: Choosing a more suitable material with better flow properties can reduce the tendency of weld line formation.
- Part Design Modifications: Redesigning the part with smoother flow paths and eliminating abrupt changes in wall thickness can help improve material flow and reduce weld line occurrence.
- Increase Mold Temperature: Raising the mold temperature can improve the material's flowability, reducing the chance of weld line formation.
- Mold Surface Treatment: Treating the mold surface with coatings or additives can help reduce friction and improve plastic flow, reducing weld line formation.
- Mold Venting: Ensuring proper mold venting allows trapped air to escape during the injection molding process, reducing the likelihood of weld lines.
- Mold Filling Simulation: Using mold filling simulation software can help identify potential weld line locations during the design phase, allowing for adjustments to prevent or minimize their occurrence.
By addressing these causes and implementing appropriate solutions, injection molders can effectively minimize or eliminate weld lines in plastic parts, resulting in improved part quality and performance.
Introduction
Injection molding is a widely used manufacturing process for producing plastic parts. It involves injecting molten plastic into a mold cavity, where it cools and solidifies into the desired shape. لكن, injection molding is not without its challenges. One of the common defects that can occur in injection molded parts is weld line.

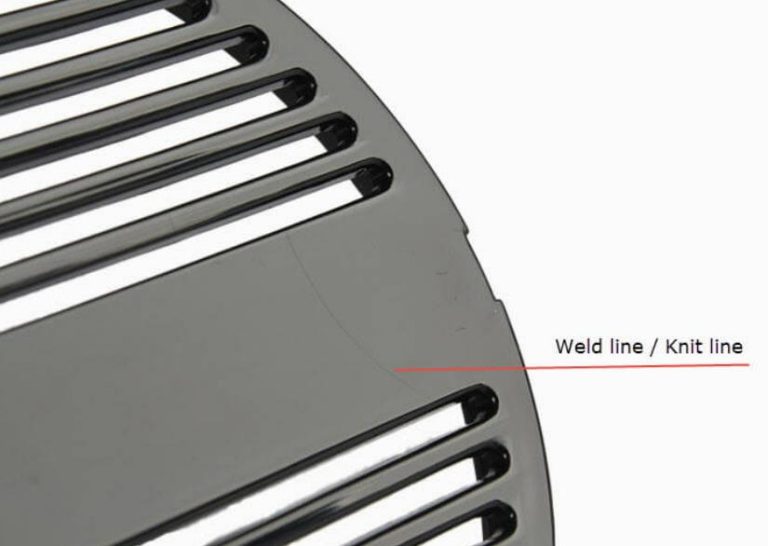

Weld line, also known as knit line or meld line, is a visible line or mark on the surface of a plastic part where two or more flow fronts of molten plastic meet and fuse together. Weld line can affect the appearance, strength, and functionality of injection molded parts. لذلك, it is important to understand what causes weld line and how to prevent or minimize it.
we will explain what weld line is, how it affects injection molded parts, what causes it, and how to prevent or minimize it. By following these tips, you can improve the quality and performance of your injection molded parts and avoid costly rework or rejection.
What is Weld Line?
Weld line is a visible line or mark on the surface of a plastic part where two or more flow fronts of molten plastic meet and fuse together. It occurs when the molten plastic flows around an obstacle in the mold cavity, such as a hole, a pin, a core, or a slide. As the plastic flows around the obstacle, it splits into two or more flow fronts that rejoin at the other side of the obstacle. If the flow fronts do not merge completely or uniformly, they create a weak spot or a discontinuity on the surface of the part.
Weld line can also occur when multiple injection points are used to fill a large or complex mold cavity. In this case, the molten plastic flows from different directions and meets at some point in the mold cavity. If the flow fronts do not match in temperature, ضغط, or velocity, they create a weld line on the part.
How Does Weld Line Affect Injection Molded Parts?
The appearance, strength, and how well injection moldThe appearance, strength, and how well injection mold be affected by something called a and how well injection molded parts work can all be affected by something called a weld line. Depending on the type and color of plastic used, this weld line might show up as a dark or light streak, a shiny or dull spot, a change in texture, or a difference in color on the part's surface. This can make the part look less attractive or not match the desired look.
Weld lines can also weaken the mechanical properties of injection molded parts. Since it's an area where the plastic molecules aren't fully bonded together, it can lower the part's tensile strength, impact strength, fatigue strength, and fracture toughness. It can also increase stress concentration and crack propagation in the part. This could lead to the part breaking too soon or not performing as well under load or impact.
Lastly, weld lines can affect how well injection molded parts function. على سبيل المثال, if a weld line appears on a sealing surface or an electrical contact point, it could cause leaks or poor conductivity. If it's on a moving part or a snap-fit feature, it could wear out or break more easily. And if it's on a part that's meant to look good or is used in medical devices, it could upset customers or pose safety issues.
What Causes Weld Line?
Weld line is caused by various factors related to the plastic material, the mold design, and the injection molding process. Some of the common causes of weld line are:
- Low melt temperature: If the melt temperature is too low, the molten plastic will cool down quickly as it flows through the mold cavity. This will reduce its fluidity and viscosity, making it harder for the flow fronts to merge smoothly and completely.
- High injection speed: If the injection speed is too high, the molten plastic will flow with high turbulence and shear stress. This will cause air entrapment and molecular orientation in the flow fronts, making them incompatible and difficult to fuse together.
- Low mold temperature: If the mold temperature is too low, the molten plastic will solidify rapidly as it contacts the mold surface. This will create a frozen layer that prevents further bonding between the flow fronts.
- Poor venting: If the mold cavity is not properly vented, air and gas trapped in the cavity will create back pressure and resistance for the molten plastic to flow. This will reduce its fluidity and viscosity,
making it harder for the flow fronts to merge smoothly and completely. - Inadequate clamping force: If the clamping force is too low, the mold halves may not close tightly enough to prevent flash or leakage of molten plastic. This will create gaps or irregularities in the mold cavity that disrupts the flow pattern and alignment of the flow fronts.
How to Prevent or Minimize Weld Line?
The best way to prevent or minimize weld line is to optimize the injection molding process parameters and design. Here are some tips to consider:
- Use a single gate or a balanced runner system to ensure uniform flow of molten plastic into the mold cavity.
- Increase the injection speed and pressure to reduce the cooling time of the molten plastic and avoid premature solidification.
- Increase the mold temperature and decrease the melt temperature to reduce the viscosity and improve the flowability of the molten plastic.
- Use a mold with adequate venting to release the trapped air and gas in the mold cavity.
- Avoid sharp corners, ribs, holes and other features that can create flow resistance and turbulence in the mold cavity.
- Use a material with high melt strength and low shrinkage to resist deformation and separation at the weld line.
- Add compatibilizers, modifiers or additives to improve the adhesion and compatibility of different materials at the weld line.
خاتمة
Weld line is a common defect in injection molding that can affect the quality and performance of the molded part. By following the above tips, you can prevent or minimize weld line in your injection molding process. لكن, if weld line still occurs, you can use some solutions such as post-molding treatments, surface coatings or cosmetic enhancements to improve the appearance and functionality of the molded part.
If you need professional assistance with your injection molding project, please contact us today. We have extensive experience and expertise in injection molding and can help you achieve high-quality results with minimal defects.
