Boss Design Tips For Molded Plastic Parts

Boss Design Tips For Molded Plastic Parts

Designing molded plastic parts requires careful consideration of various factors to ensure a successful and efficient manufacturing process. Here are some boss design tips to optimize the performance and manufacturability of molded plastic parts:

  1. Wall Thickness: Maintain uniform wall thickness in the boss region to promote even filling during the injection molding process. Uneven wall thickness can result in flow imbalances, sink marks, and warping.
  2. Radii and Fillets: Incorporate generous radii and fillets in the boss design to minimize stress concentration and enhance strength. Sharp corners can lead to stress concentrations, increasing the risk of part failure.
  3. Draft Angles: Provide draft angles on the boss’s exterior surface to facilitate part ejection from the mold. Draft angles help prevent part sticking and reduce the likelihood of damage during ejection.
  4. Ribbing: Consider adding ribs to the boss design to increase rigidity and enhance load-bearing capabilities. Ribs help distribute stress across the part and improve overall structural integrity.
  5. Gate Placement: Position the gate (the point where molten plastic enters the mold) away from critical boss areas to avoid weld lines and potential weaknesses.
  6. Material Selection: Choose a plastic material that suits the specific requirements of the part, including mechanical properties, temperature resistance, and chemical compatibility.
  7. Undercuts and Threads: Avoid designing undercuts or internal threads within the boss region, as they can complicate mold design and increase production costs.
  8. Boss Height: Optimize the boss height based on the application and part function. Excessively tall bosses may lead to sink marks or warpage, while very short bosses may compromise strength.
  9. Venting: Ensure adequate venting in the mold to allow air to escape during injection molding. Proper venting prevents voids and air traps in the boss area.
  10. Avoid Overpacking: Avoid overpacking the mold with excessive material in the boss region, as it can lead to stress and warping issues.
  11. Tolerances: Specify appropriate tolerances for the boss dimensions to ensure that the part meets the required specifications.
  12. Prototyping: Consider prototyping the design to evaluate its functionality, fit, and form before proceeding to mass production. Prototyping helps identify and address potential design issues early in the process.
  13. Consult with Mold Manufacturer: Collaborate with the mold manufacturer during the design phase to optimize the mold design for manufacturability and efficiency.

By following these tips on mold design, you can improve the quality and performance of your plastic injection molded parts while optimizing the injection molding process. Effective mold design is critical to the overall success of a plastic injection molding project, ensuring that the final part will meet expected specifications and performance requirements.

First of all, when designing the mold, the characteristics of the plastic material must be fully considered. Different plastic materials have different fluidity, shrinkage and thermal conductivity properties, so the mold design needs to be adjusted accordingly according to the characteristics of the selected plastic material. For example, for high-flow plastic materials, smaller gate and runner sizes can be used to reduce material waste and molding cycle; while for low-flow plastic materials, larger gate and runner sizes need to be used. channel dimensions to ensure that the material can fully fill the mold.

Secondly, reasonable setting of the cooling system is also the key to improving mold performance. The design of the cooling system should take into account the shape, size and characteristics of the plastic material of the mold to ensure that the mold can be cooled quickly and evenly during the injection molding process. In addition, the cooling system also needs to be inspected and maintained regularly to prevent parts defects caused by poor cooling.

Furthermore, the clamping part of the mold also needs to be carefully designed. The design of the mold closing part should ensure that the mold can be tightly closed during the injection molding process to prevent leakage of plastic material. At the same time, the strength and stiffness of the mold closing part also need to meet the requirements of the injection molding process to ensure that the mold can work stably under high-pressure and high-temperature conditions.

In addition, the surface treatment of the mold also has a great impact on the quality of the parts. In order to improve the surface quality and wear resistance of parts, polishing, plating and other treatments can be performed on the surface of the mold. At the same time, the overall quality of parts can be improved by optimizing the exhaust system of the mold to reduce the generation of bubbles and weld lines.

Finally, during the mold design process, production efficiency and cost also need to be fully considered. By optimizing the mold structure, reducing the number of mold parts and simplifying the mold manufacturing process, the manufacturing and maintenance costs of the mold can be reduced, thereby improving the efficiency of the entire injection molding process.

In summary, by following these tips on mold design, you can effectively improve the quality and performance of your plastic injection molded parts while optimizing the injection molding process. This will help ensure your plastic injection molding project is successful and that the final part meets expected specifications and performance requirements.

Learn how to design bosses for your plastic parts to ensure optimal strength, functionality and manufacturability.

Description

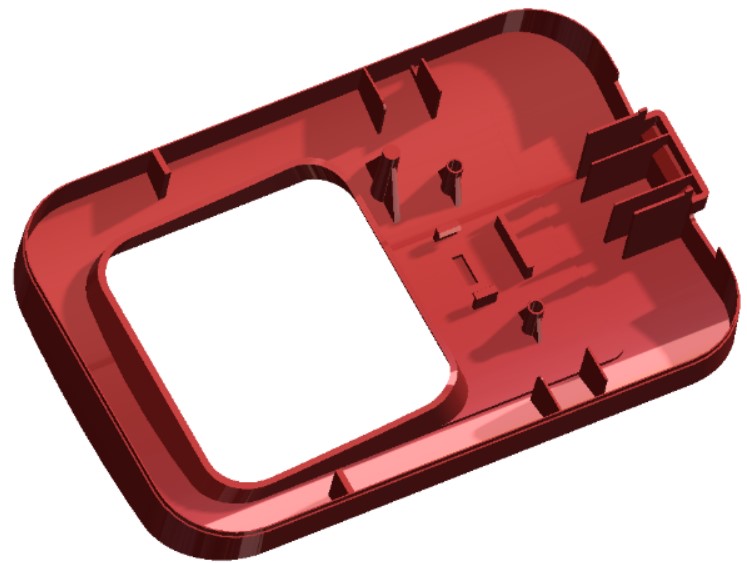

Bosses are protruding features on plastic parts that are used for attachment or assembly purposes. They are usually cylindrical in shape and have holes to accommodate screws, threaded inserts or other fastening hardware. Bosses can also serve as locators for mating pins on another part.

Designing bosses for plastic parts requires careful consideration of several factors, such as wall thickness, height, diameter, draft angle, gussets and ribs. These factors affect the strength, functionality and manufacturability of the part. In this blog post, we will discuss some of the best practices and tips for designing bosses for molded plastic parts.

Table of Content

  • What are the benefits of using bosses for plastic parts?
  • What are the challenges of designing bosses for plastic parts?
  • How to design bosses for plastic parts: 9 tips
  • Tip 1: Choose the right ratio of outer diameter to inner diameter
  • Tip 2: Keep the boss wall thickness between 40% and 60% of the part wall thickness
  • Tip 3: Use gussets to support and strengthen the boss
  • Tip 4: Use ribs to tie the boss to a vertical wall
  • Tip 5: Apply draft angles to both inside and outside walls of the boss
  • Tip 6: Avoid creating thick areas in the part by placing bosses away from vertical walls or corners
  • Tip 7: Consider using threaded inserts or self-tapping screws instead of through holes
  • Tip 8: Avoid using multiple bosses in close proximity
  • Tip 9: Perform a mold flow analysis to identify potential molding issues
  • Conclusion

What are the benefits of using bosses for plastic parts?

Bosses are widely used in plastic part design because they offer several benefits, such as:

  • They provide a secure and reliable way of attaching or assembling plastic parts with other components.
  • They reduce the need for additional fasteners or adhesives, which can add cost and complexity to the assembly process.
  • They allow for easy alignment and positioning of mating parts, which can improve the fit and function of the final product.
  • They can enhance the structural integrity and stiffness of the plastic part by adding reinforcement and support.

What are the challenges of designing bosses for plastic parts?

While bosses are useful features for plastic parts, they also pose some challenges for designers and engineers, such as:

  • They can create stress concentrations and weak points in the part, especially if they are not designed properly or subjected to excessive loads.
  • They can cause molding defects, such as sink marks, voids or warping, due to uneven cooling or shrinkage of the plastic material around the boss.
  • They can increase the cycle time and tooling cost of the injection molding process, due to longer cooling time or additional mold features required to form the boss.

Therefore, it is important to follow some guidelines and best practices when designing bosses for plastic parts to avoid these potential problems and ensure optimal performance and quality.

How to design bosses for plastic parts: 9 tips

Here are some tips that can help you design better bosses for your plastic parts:

Tip 1: Choose the right ratio of outer diameter to inner diameter

The ratio of the outer diameter (OD) to the inner diameter (ID) of the boss affects its strength and functionality. A higher ratio means a thicker boss wall, which can provide more strength and stability. However, a thicker boss wall also means more material usage and higher risk of sink marks or voids.

A lower ratio means a thinner boss wall, which can reduce material usage and molding defects. However, a thinner boss wall also means less strength and stability, which can compromise the function of the fastening hardware.

According to standard practices , the ratio of OD to ID should be between 2 to 3. This means that if you have a hole with an ID of 4 mm, your OD should be between 8 mm and 12 mm.

Tip 2: Keep the boss wall thickness between 40% and 60% of the part wall thickness

The boss wall thickness affects its strength and manufacturability. A thicker boss wall can provide more strength and resistance to deformation. However, a thicker boss wall also creates a thicker area in the part, which can cause uneven cooling or shrinkage of the plastic material around the boss. This can result in sink marks or voids on the opposite surface of the part.

A thinner boss wall can reduce material usage and molding defects. However, a thinner boss wall also provides less strength and resistance to deformation. This can compromise the function of the fastening hardware or cause cracking or breaking of the boss.

According to standard guidelines , the boss wall thickness should be between 40% and 60% of the part wall thickness. This means that if you have a part with a wall thickness of 2 mm, your boss wall thickness should be between 0.8 mm and 1.2 mm.

Tip 3: Use gussets to support and strengthen the boss

Gussets are triangular-shaped features that connect the base of the boss to the adjacent surface of the part. They provide additional support and strength to the boss by distributing the load more evenly across a larger area. They also reduce stress concentrations and weak points in the part.

Gussets should be used when:

  • The boss is subjected to high loads or stresses
  • The boss is tall or slender
  • The boss is located far from other supporting features
  • The boss requires more strength than what can be provided by its wall thickness

Standard practices suggest that:

  • The height of the gussets should be around 2/3 of the height of the boss
  • The angle between the gussets and the base surface should be between 30° and 45°
  • The number of gussets should be at least 3, preferably 4 or more

Tip 4: Use ribs to tie

the boss to a vertical wall

Ribs are thin features that connect two surfaces at an angle. They provide additional support and strength to both surfaces by increasing their stiffness and rigidity. They also reduce stress concentrations and weak points in both surfaces.

Ribs should be used when:

  • The boss is part of a vertical wall
  • The boss is located close to a vertical wall
  • The vertical wall requires more strength than what can be provided by its thickness

Standard practices suggest that:

  • The rib thickness should be between 40% and 60% of both surfaces’ thicknesses
  • The rib height should be equal or less than both surfaces’ heights
  • The rib width should be equal or less than both surfaces’ widths
  • The angle between the rib and both surfaces should be between 30° and 45°
  • The number of ribs should be at least 1, preferably 2 or more

Tip 5: Apply draft angles to both inside and outside walls of the boss

Draft angles are slight inclinations that are applied to both inside and outside walls of a feature. They facilitate ejection of the part from the mold by reducing friction and resistance. They also improve surface quality by reducing drag marks or scratches.

Draft angles should be applied to both inside and outside walls of a boss because:

  • They make it easier to eject the part from the mold without damaging it
  • They prevent sticking or jamming of fastening hardware inside or outside the hole
  • They reduce stress concentrations or weak points at sharp corners or edges

According to standard guidelines, draft angles should be:

  • Between 0.5° and , depending on the height of the feature
  • Larger on textured surfaces than on smooth surfaces
  • Larger on inside walls than on outside walls

Tip 6: Avoid creating thick areas in

the part by placing bosses away from vertical walls or corners

Thick areas are regions in a part where there is a sudden change in thickness due to overlapping features. They cause uneven cooling or shrinkage of
the plastic material around them. This can result in molding defects such as sink marks, voids, warping or cracking.

Thick areas can be created by placing bosses too close to vertical walls or corners because:

  • They increase material usage unnecessarily
  • They create thermal gradients that affect material flow and cooling rates
  • They interfere with proper venting or filling of air pockets

To avoid creating thick areas in your part by placing bosses too close to vertical walls or corners:

  • Place bosses at least one diameter away from vertical walls
  • Place bosses at least two diameters away from corners
  • Use ribs instead of filling gaps between bosses and vertical walls

Tip 7: Consider using threaded inserts or self-tapping screws instead of through holes

if you need a stronger or more durable connection. Threaded inserts can be inserted into the boss during or after molding, while self-tapping screws can create their own threads in the boss during assembly. Both options can reduce stress on the boss and improve its resistance to stripping or loosening.

  • Tip 8: Avoid using multiple bosses in close proximity,
  • as they can create thick sections that can cause sink marks, warping, or uneven cooling. If you need to use multiple bosses, try to space them apart by at least three times their diameter and use ribs or gussets to connect them to the main wall.
  • Tip 9: Perform a mold flow analysis to identify potential molding issues
  • such as air traps, weld lines, short shots, or flash. A mold flow analysis can help you optimize your boss design and placement, as well as your gate location, runner size, and injection pressure.

Conclusion

Bosses are useful features for plastic parts, but they require careful design to ensure their functionality and quality. By following these tips, you can design bosses for plastic parts that are strong, durable, and cost-effective. If you need help with your boss design or any other aspect of your plastic part design, contact us today. We have extensive experience in plastic injection molding and can provide you with expert advice and guidance.
